EPM-XP
Electronic Indicator for Diesel Engines
Electronic Indicator for Diesel Engines
Function
The EPM-XP unit includes cylinder pressure sensor incl. data acquisition and is a computerized tool for reliable and precise combustion performance evaluation on two- and four stroke engines.
EPM-XP USB connection
The EPM-XP has a USB connection to a personal computer, where the visualisation software is installed.
EPM-XP Application
• 2 stroke engines: 40 – 300 RPM
• 4 stroke engines: 200 – 1500 RPM
Calculation
• Pmaxmean
• Pcomp (on 2-stroke engines)
• Engine Speed
• dp/ca max. gradient
of pressure curve
• Pcomp (on 2-stroke engines)
• Engine Speed
• dp/ca max. gradient
of pressure curve
Software function as option:
• IMEP calcultion
• IPOWER calculation
• IPOWER calculation
Storing capacity
• max. 20 measurements
• Option: 160 measurements
• Option: 160 measurements
EPM-XP Scope of supply
How to calculate IPower and IMEP on 2-stroke engines
EPM-XP Visualisation software
Rel. 1.0.7.2– functions of standard version
Rel. 1.0.7.2– functions of standard version
EPM-XP Visualisation software
Rel. 1.0.7.2 – functions of standard version
Automatic Pcomp calculation on 4-strokes
Rel. 1.0.7.2 – functions of standard version
Automatic Pcomp calculation on 4-strokes
EPM-XP Visualisation software
Rel. 1.0.7.8– functions of standard version
Rel. 1.0.7.8– functions of standard version
Summary
• One measuring device for 2- and 4 stroke engines
• Pressure signal is temperature compensated high accuracy
• Each unit will be delivered with calibration protocol
• Automatic Pcomp and IPOWER calculation on two- and four stroke application
• Trending function
• Save measured data to ASCII format
• Battery charging from PC via USB port
• Automatic self test function for offset check
• Checking accuracy at pressure calibrator acc. ISO 9001
• Pressure signal is temperature compensated high accuracy
• Each unit will be delivered with calibration protocol
• Automatic Pcomp and IPOWER calculation on two- and four stroke application
• Trending function
• Save measured data to ASCII format
• Battery charging from PC via USB port
• Automatic self test function for offset check
• Checking accuracy at pressure calibrator acc. ISO 9001

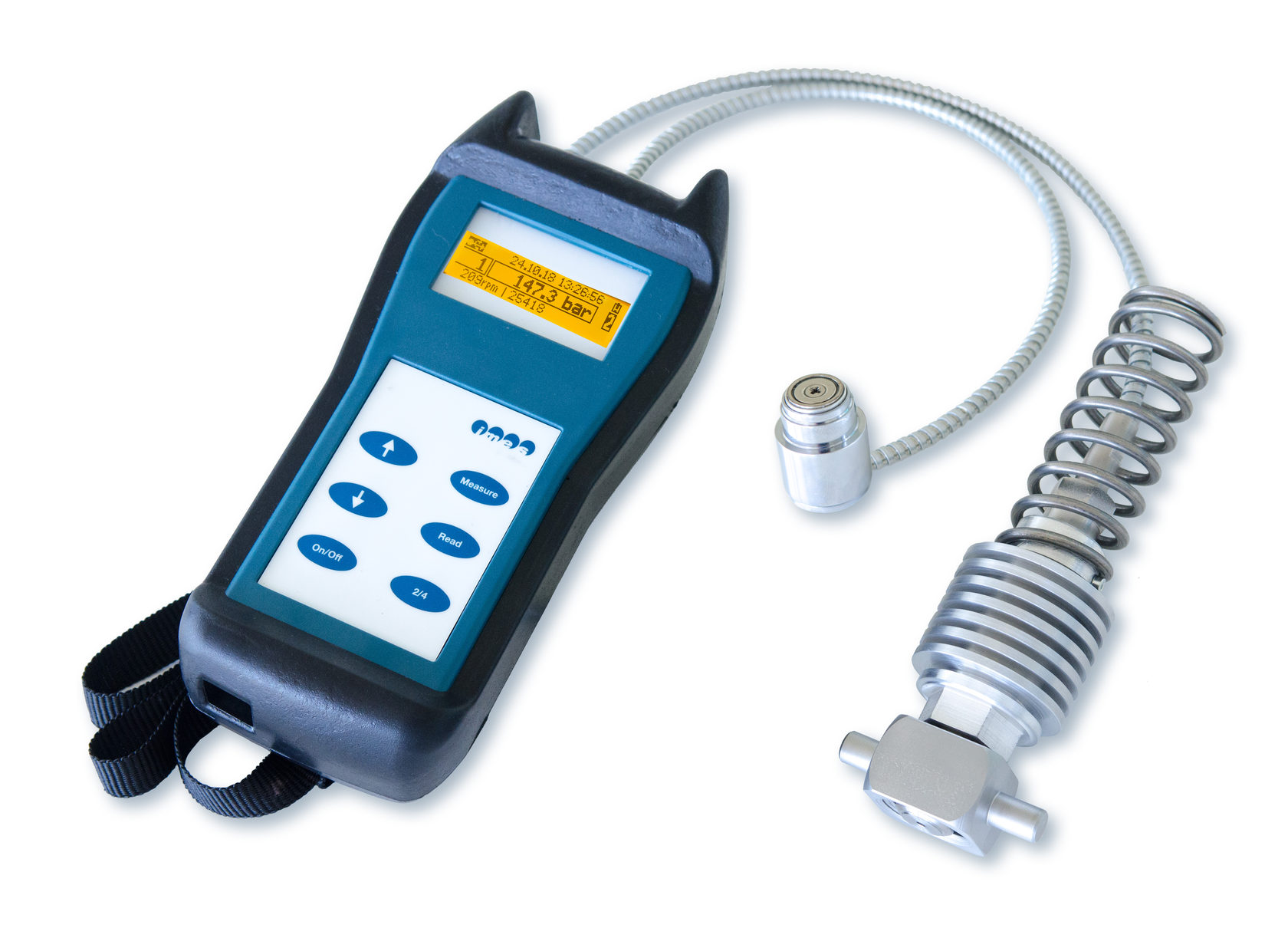

Engine Analyser EPM-XP plus
Advanced features:
- High accuracy;
- Automatic ЕВС correction;
- Automatic Pcomp calculation;
- IPOWER and IMEP calcultion;
- Advanced trending functions;
- Advanced visualisation and data processing software.
Advanced features:
- High accuracy;
- Automatic ЕВС correction;
- Automatic Pcomp calculation;
- IPOWER and IMEP calcultion;
- Advanced trending functions;
- Advanced visualisation and data processing software.
NEW Advanced features:
- Higher battery capacity - power more than 20 hours;
- Continuous measurement to analyse actual actual engine condition by direct data transfer via USB/Ethernet (max.lenght 50m) to PC;
- Comprehensive analysing software for ships - and power plant application;
- Direct data transfer to IPE (IMES Performance Evaluation Software);
- Vibro sensor for definition of fuel injection and valve timing in preparation.
Application:
- 2 stroke engines 40 - 900 RPM
- 4 stroke engines 200 - 1800 RPM
- Higher battery capacity - power more than 20 hours;
- Continuous measurement to analyse actual actual engine condition by direct data transfer via USB/Ethernet (max.lenght 50m) to PC;
- Comprehensive analysing software for ships - and power plant application;
- Direct data transfer to IPE (IMES Performance Evaluation Software);
- Vibro sensor for definition of fuel injection and valve timing in preparation.
Application:
- 2 stroke engines 40 - 900 RPM
- 4 stroke engines 200 - 1800 RPM
EPM-XP
MARINE TYPE APPROVAL FOR HTT-CYLINDER PRESSURE SENSOR
 |  |  |  |  |  |  |  |
